Brand Name: Yuanda
Model Number: YLW
Place of Origin: Henan, China (Mainland)

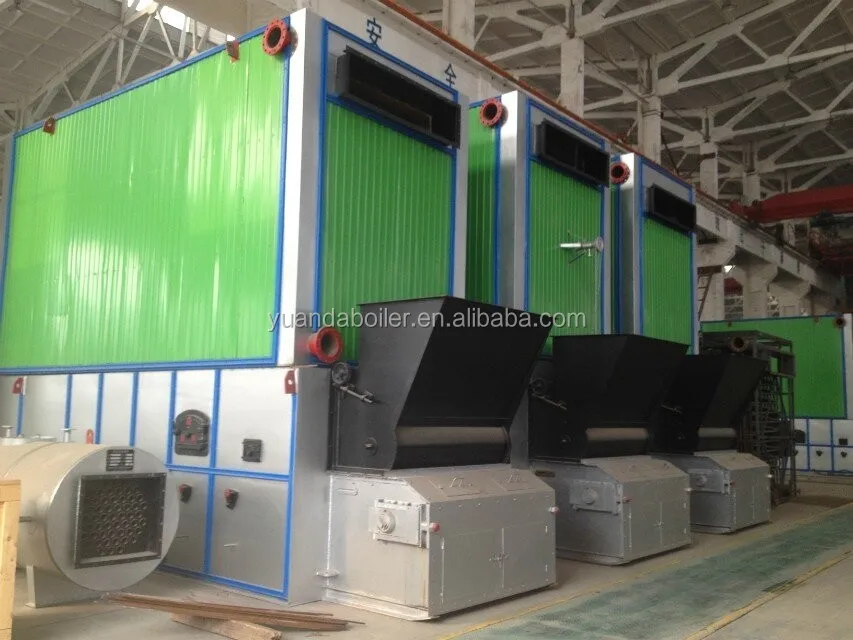

coal/wood/ biomass fired heat transfer oil heater boiler furnace for industry
| Product name | YLW horizontal low pressure automatic chain grate stoker coal/ wood/ biomass fuels/ pellets thermal oil boilers |
| Product description | Powered by circulation pumps, heating as medium, organic heat transfer oil flow out from boiler into equipments which need heat energy, transferring heat energy, and then flow back to boiler proper. The organic thermal oil flow through the whole system and transfer heating energy to heat the equipment. |
| Title | coal/wood/ biomass fired heat transfer oil heater boiler furnace for industry |
| Model | YLW-700MA, YLW-1400MA, YLW-2800MA, YLW-4200MA |
| Rated thermal power | 700kW, 1400kW, 2900kW, 4200kW |
| Rated working pressure | 8bar/ 0.8mpa |
| Rated out/return oil temperature | 320/280 °c |
| Design fuels | solid fuels coal, charcoal, anthracite coal, coal powder, pulverized coal, lignite coal charcoal wood, wood logs, wood chips, wood pellets, wood shredded, wood residues, mixed wood, wood cuttings, wood shavings, wood strips biomass fuels, rice husk, rice hull bagasse, straw pellets, crop pellets, corncobs, etc. |
| Features | 1.Low pressure but high temperature, safe, high efficiency and saving energy. 2.Equipped with complete operation control and safe monitoring device, which can control working temperature precisely. 3.Reasonable structure, auxliary machines fully furnished. 4.Easy to be installed, operation and maintenance. |
| Appllication | Provide heating energy to, Food industry, Paywood plants, Textile & dyeing industry Plastic & rubber industry, Paper-making industry, Painting industry, Package industry, Construction industry, Metallurgy industry, and other industry plants |
| Boiler proper | 1 set |
| Forced fan | 1 set |
| Induced fan | 1 set |
| Meters control system | 1 set |
| Grate speed governor | 1 set |
| Circulation pump | 1 set |
| Oil filling pump | 1 set |
| Expansion tank | 1 set |
| oil storage tank | 1 set |
| Oil & gas separator | 1 set |
| Filter | 1 set |
| Chimney | 1 set |
| Gas flue | 1 set |
| Fuel conveyor | 1 set |
| Slag remover | 1 set |
| Dust collector | 1 set |
| Air preheater | 1 set |
| Thermal oil boiler model | YLW-700MA | YLW-1400MA | YLW-2900MA | YLW-4200MA |
| Thermal power(kw) | 700 | 1400 | 2900 | 4200 |
| Heat efficiency(%) | 80 | 80 | 80 | 80 |
| Design pressure(Mpa) | 1.1 | 1.1 | 1.1 | 1.1 |
| Tmax(°c) | 320 | 320 | 320 | 320 |
| Ciculation oil volume(m3/h) | 100 | 100 | 180 | 250 |
| Piping connecting diameter(DN) | 125 | 150 | 150 | 150 |
| Total weight(kg) | 19800 | 20500 | 24600 | 37500 |
Henan Yuanda Boiler Co., Ltd. was established in 1956. We are professional manufacturer and supplier of industrial boilers, with fifty years' experience in boiler design, technique, production, installation and operation. Our company is one of the leading enterprises which first obtained the national boiler manufacturing license in China.Our plant is located in Zhoukou city and office in Zhengzhou city, Henan province, the central part of China. Yuanda Boiler already passed and got the ISO 9001 Quailty Management System Authentication Certificate, which regulate the whole working process of factory.
We are a quality focused group of highly experienced & qualified technologists and engineers who have excelled into the innovative domain of thermal engineering.Innovations being an integral part of our business ethics, has compelled us in setting up R & D team which plays a very important role in bringing new designs into existence. In house testing facilities before on sight installation has been one of strict process in the production. With the professional infrastructure and technicians, we are all set to provide high quality products to customers.
